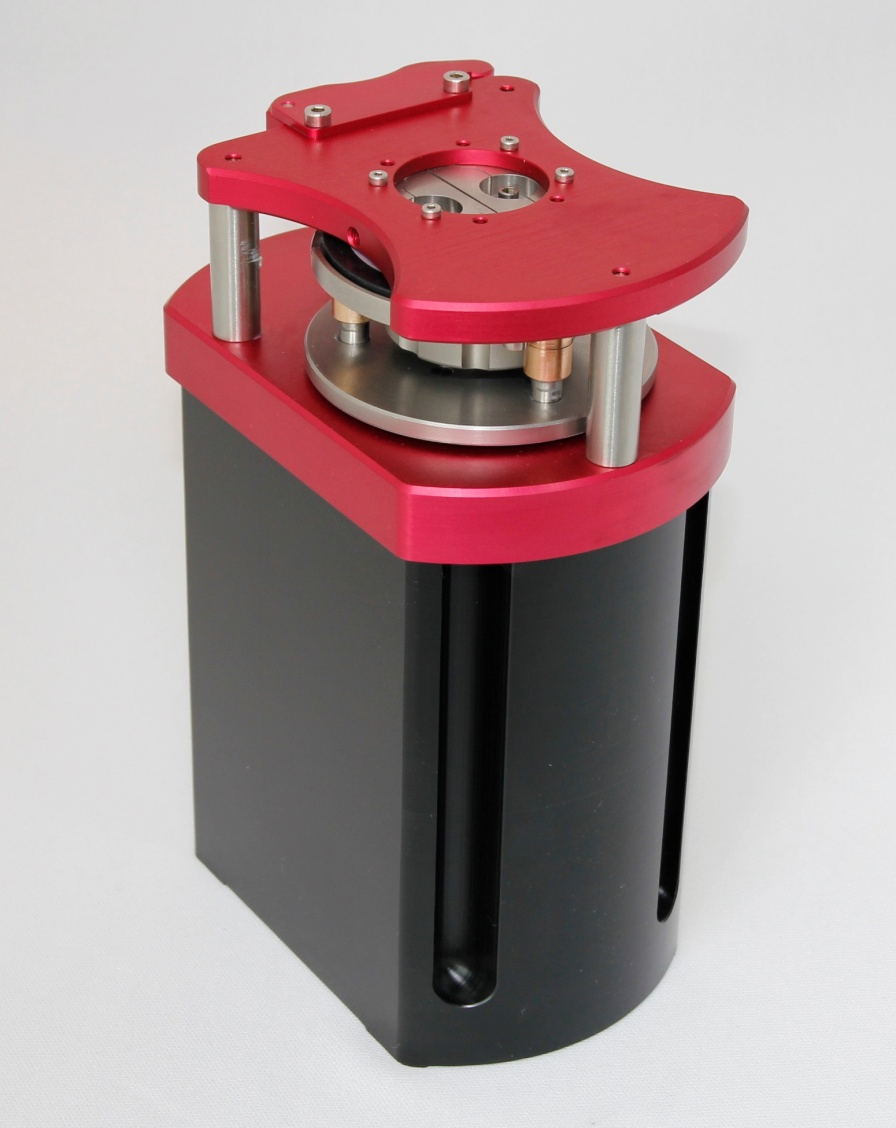

Field Master Motorized Polisher
Overview
Stran Technologies’s FM1000 series fiber connector polishers are unique field or lab polishing machines. The Field Master is equipped with a high-torque DC motor that can operate between 6-12 V DC.
The Field Master allows adjustable force through a micrometer to ensure consistent dome finish for a wide variety of connector types and the number of connectors in the fixture. The user can polish 1-2 connectors/ferrules in one polish run. The improvement in polish quality and end-face geometry with a polisher, particularly important for single-mode fiber connectorization, is a significant step forward for technicians and installers who are used to polishing connectors by hand using a polishing puck.
Features / Options
-
Polish up to two connectors or ferrules simultaneously
-
Quick release for convenient removal of polishing fixture
-
Micrometer force adjustment for perfect pressure on 1 or 2 ferrules and different ferrule sizes
-
Low center of gravity for stability
-
Small footprint for transportability
-
Quick-change mechanism allows rapid removal of polishing fixture
-
Universal fixture fits all connectors/ferrules with the same ferrule diameter (PP250 fixture standard for FC, ST, SC and TFOCA GenX)
-
Reference plate for precise ferrule protrusion (longer polishing film life, faster run cycle and higher yield)
-
Flexure mechanism lock/unlock ferrule/connectors in place firmly and quickly
Specifications
| Title | Description |
|---|---|
| FM1000 | Polisher with 6-12VDC Motor includes: Fixture for 2.5mm ferrule, Polishing rubber pad, and Polishing glass pad |
| RP1000 | Polishing Rubber Pad (80 Durometer) |
| GP1000 | Polishing Glass Disk |
| PP250 | Fixture for 2.5mm ferrule or FC, ST, SC or TFOCA GenX |
| PP250FA | Fixture for 2.5mm angled ferrule for FC/APC |
| PP250SA | Fixture for 2.5mm angled ferrule for SC/APC |
| PP125 | Fixture for 1.25mm ferrule or LC |
| PP125A | Fixture for 1.25mm ferrule for LC/APC |
| PP318 | Fixture for 3.18mm ferrule or SMA905 |
| PPMTRJ | Fixture for MTRJ |
| PP200 | Fixture for 2.00mm ferrules or TacLight, M29504/14 & /15 |
| PP180 | Fixture for 1.80mm ferrules |
| PP160 | Fixture for 1.60mm ferrules or M29504/4 & /5 |
| Polishing film available by request |

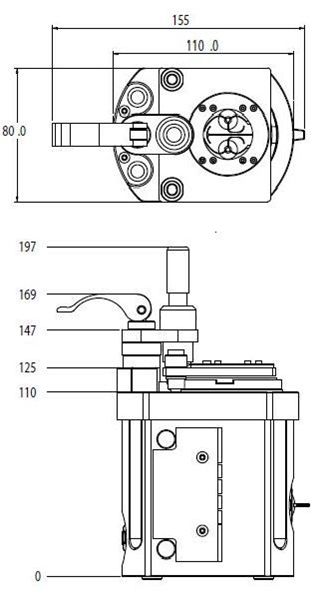

Drawings
