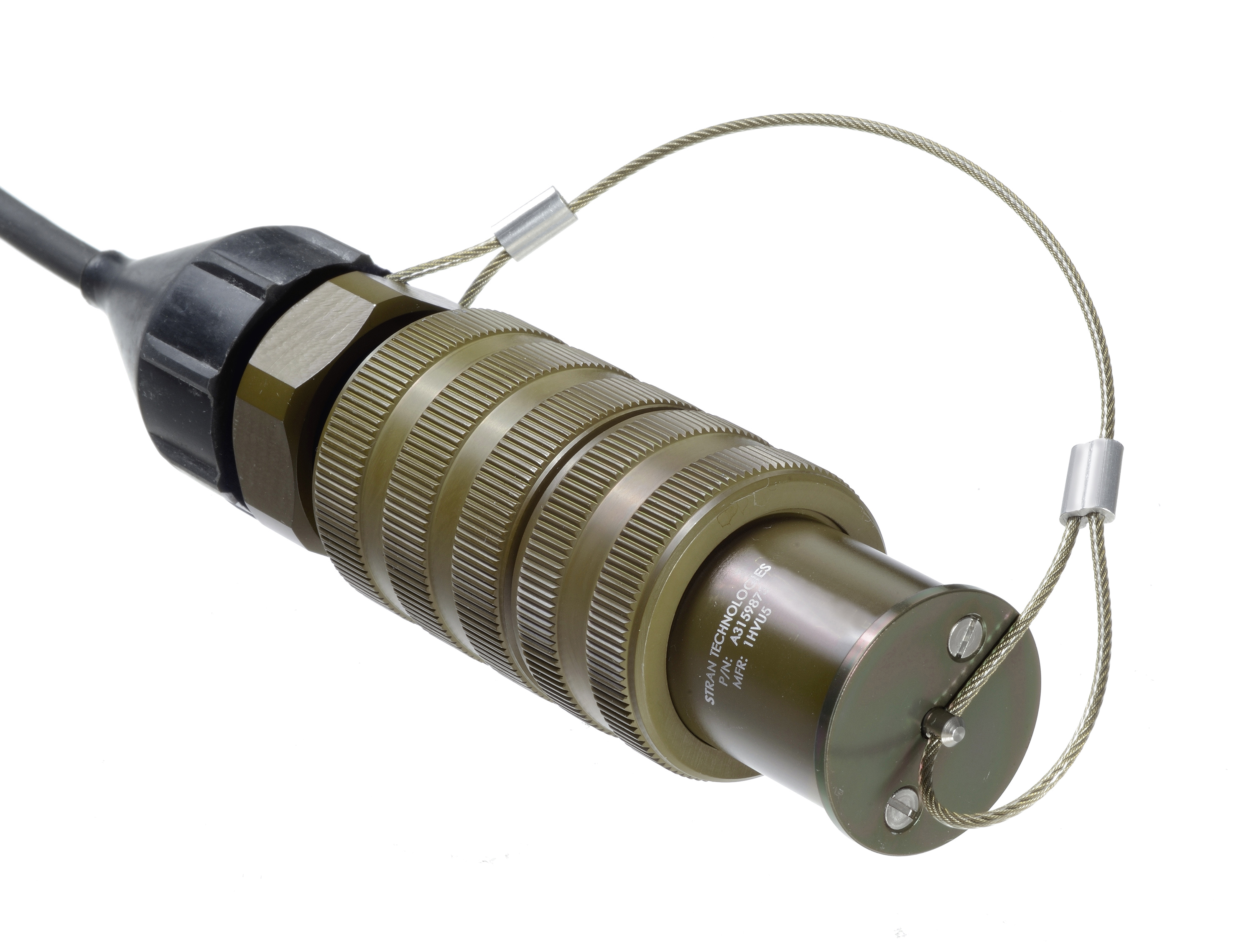

TFOCA I Tactical Fiber Optic Connector
Overview

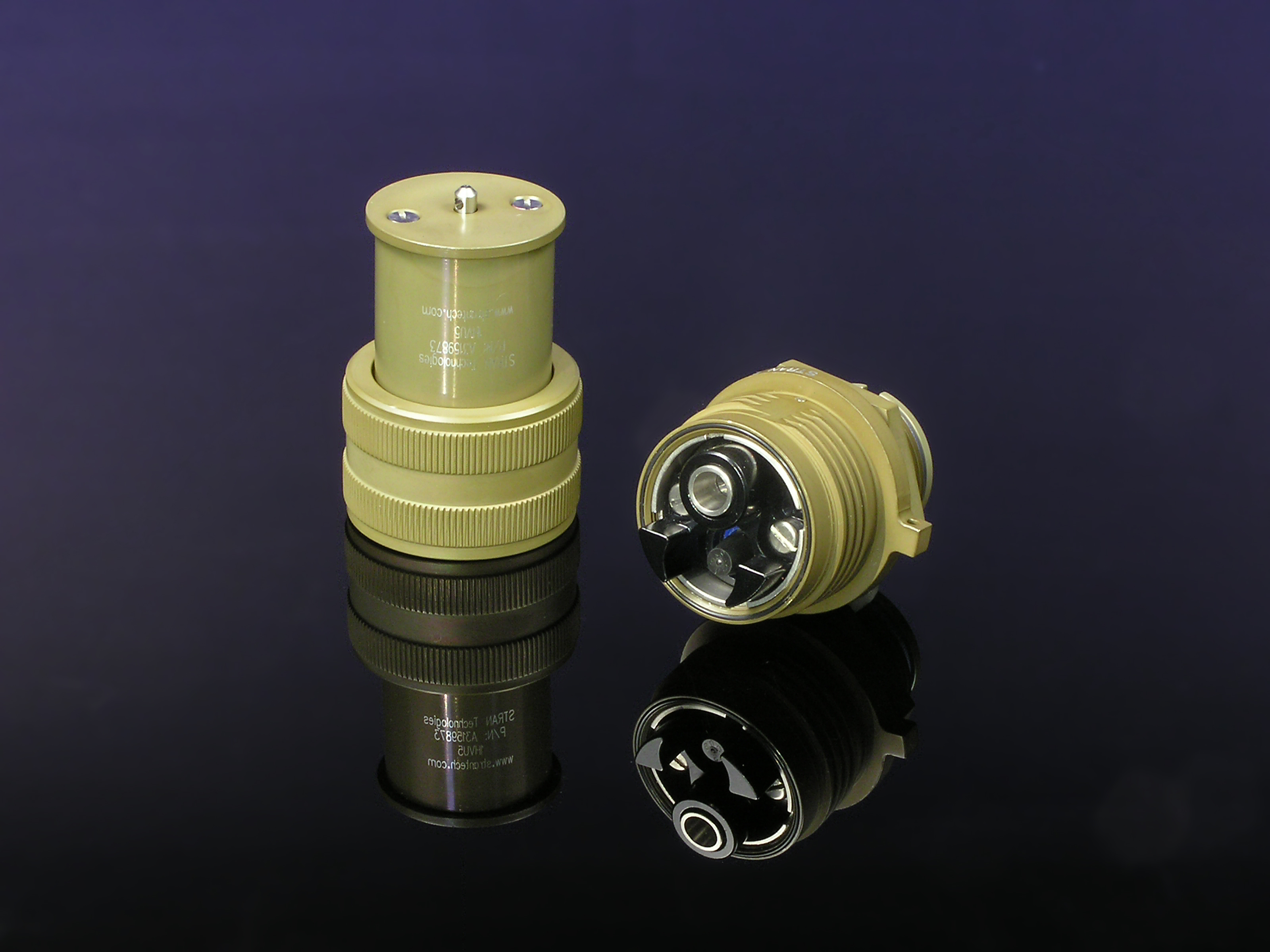

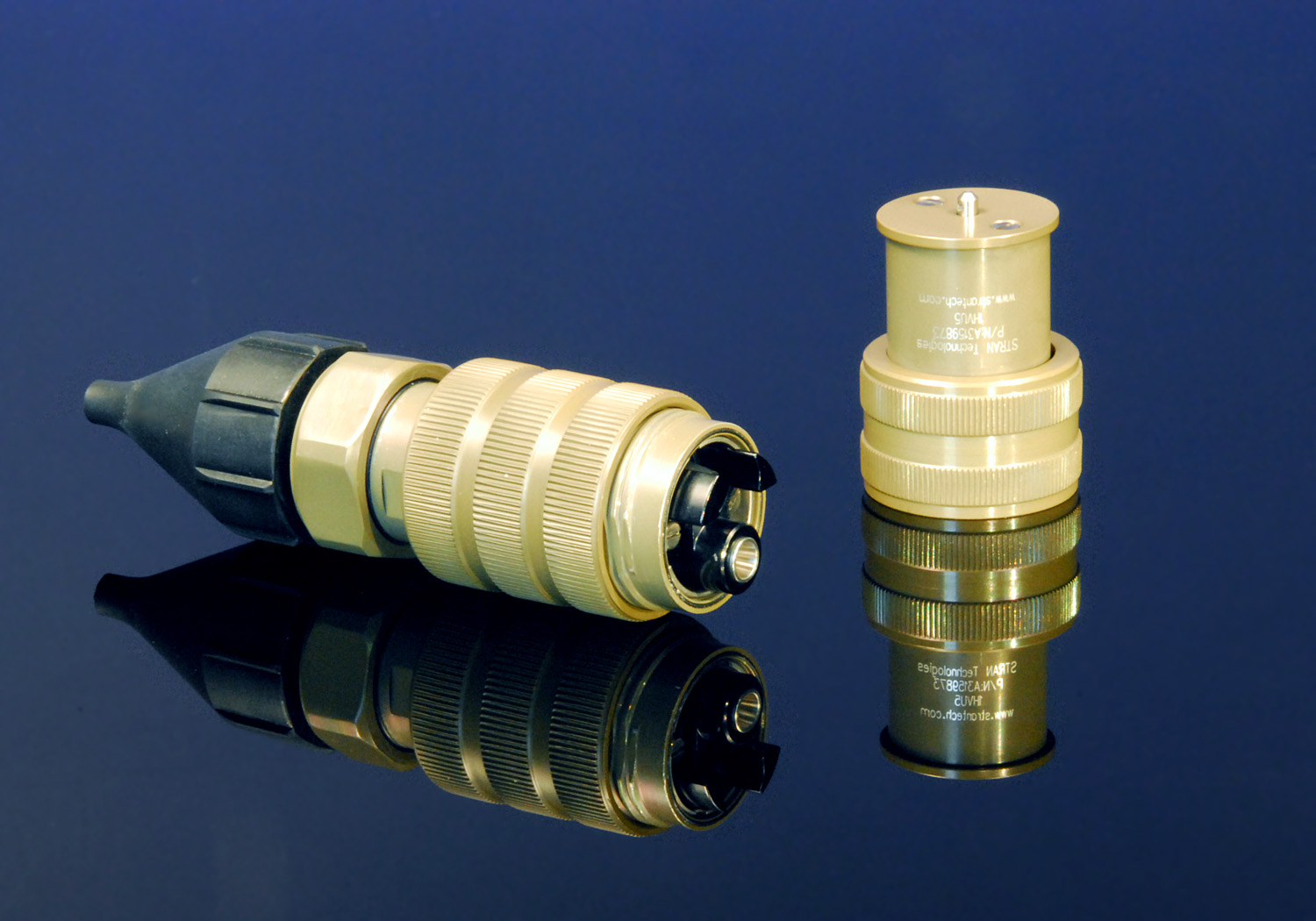

The TFOCA 1 tactical fiber optic connector provides reliable performance in harsh environments where high cycle mating is of concern. Its hermaphroditic or genderless design allows for multiple cable assemblies to be concatenated without regard for connector interface compatibility. Fully compatible with legacy products, Stran Technologies has retooled the TFOCA I with stainless steel alignment sleeves, for improved performance, repeated handling and mating cycles typically required for fiber optic cable deployment and retrieval in a tactical environment. TFOCA I solutions are available in multiple combinations, ranging from plug to plug cable assemblies to panel mounted receptacle breakout assemblies and tactical reel assemblies.
Applications
-
Deployable Military Tactical Systems
-
Outdoor Fiber Optic Networks
-
Emergency Restoration Systems
-
Video and Data Transmission
Features / Options
-
Field maintainable and repairable
-
Offered in Cadmium Plate – Olive Drab
-
Standard hermaphroditic, or genderless, configuration

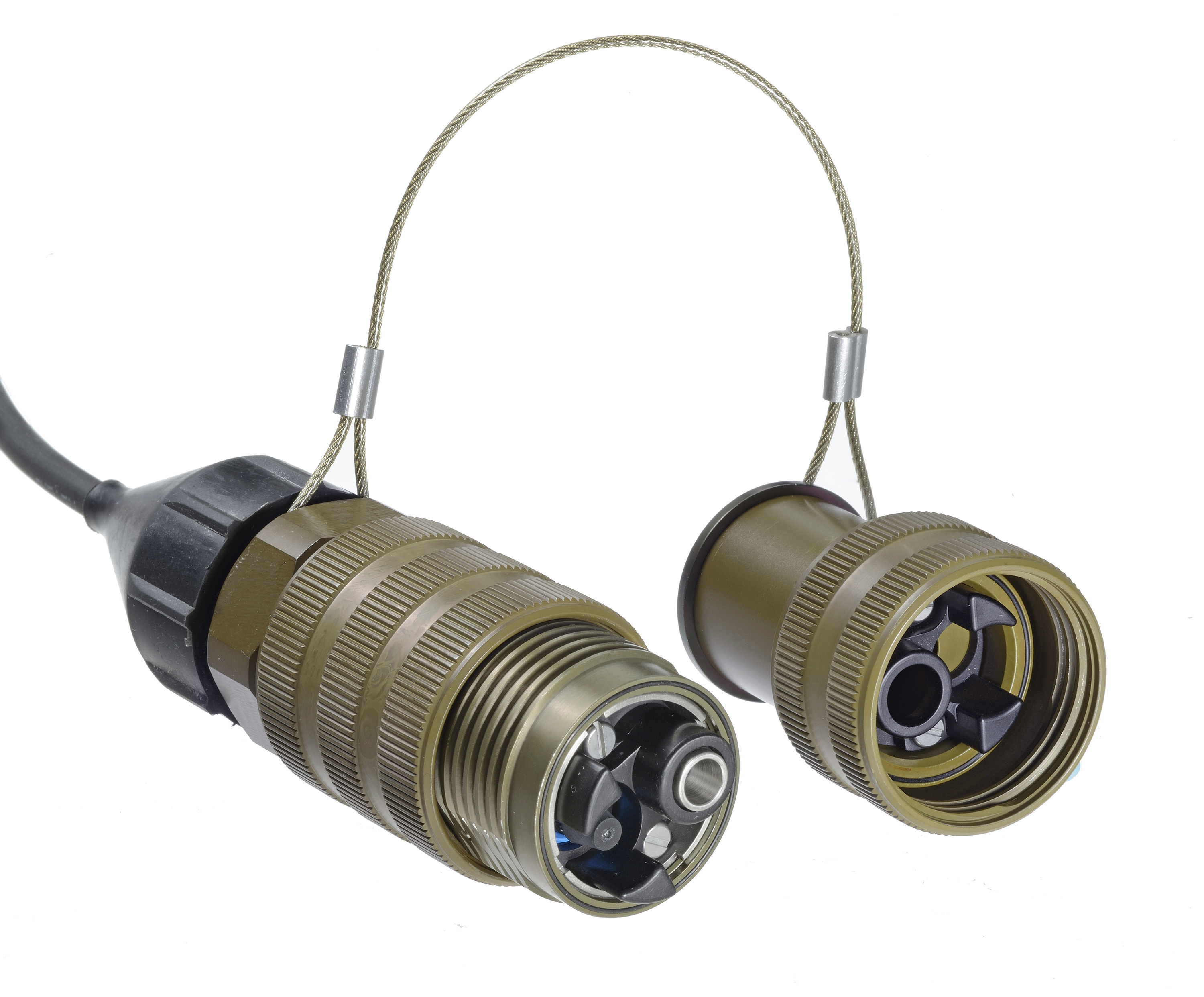

- Biconic Termini
-
Qualified to A3102608
Specifications
| Title | Description |
|---|---|
| Optical Insertion Loss | Single-mode 9/125: 3.00 dBmax, 2.00 dBtyp Multimode 50, 62.5/125: 1.50 dBmax, 0.60 dBtyp |
| Vibration | MIL-STD-1344, Method 2005.1 |
| Mating Durability | 2000 cycles per EIA-455-21 |
| Thermal Shock | -10°C to +75°C |
| Temperature Life | 250 hours at 85°C per EIA-455-4 |
| Corrosion Resistance | EIA-455-16, condition C |
| Humidity | 10 cycles per EIA-455-5 |
| Fluid Immersion | 1 meter, per EIA-455-12 |
| Crush Resistance | 450 lbs, per EIA-455-26 |
| Cable Seal Flexring | 100 cycles per MIL-STD-1344, Method 2017, Procedure I |
| Impact | TIA/EIA-455-2 |
